Hey students, Welcome to scholarkida, This blog post provides engineering drawing EDG 312311 IMP Questions for Class Tests & Notes for study.
The engineering drawing subject is part two of the engineering graphics subject. Class test important questions for this subject is given below.
EDG 312311 IMP Questions for Class Test
Unit – I Sectional Orthographic Views

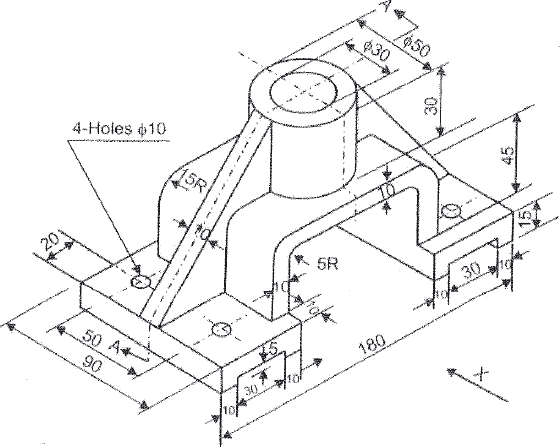

- A pictorial view of the object is shown in Figure. Draw the following views (Use the First angle method).
- Sectional front view along A – A.
- Top view

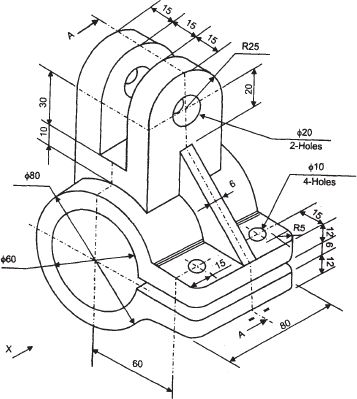

- A pictorial view of the object is shown in Figure. Draw the following views (Use the First angle method)
- Sectional front view along A – A.
- Top view
- A pictorial view of the object is shown in Figure. Draw the following views (Use the First angle method)
- Sectional front view along A – A.
- Top view
Unit – II Projection of Lines and Planes
- Line AB 90 mm long has its end A 20 mm above HP and 25 mm in front of VP. The line is inclined at 30° HP and 45° to V.P. draw the projections.
- A line AB, 60 mm long, has its end A 25 mm above HP and 30 mm in front of VP. It is inclined at 30° to the HP and 45° to the VP. Draw its front view and top view.
- The top view of a 75 mm long line AB measures 65 mm, while the length of its front view is 50 mm. It’s one end A is in the H.P. and 12 mm in front of V.P. Draw the projections of AB and determine its inclination with the H.P. & V.P.
- Line AB 75Â mm long has its end point A 15Â mm above HP and 10Â mm in front of VP and end point B 45Â mm above HP and 50Â mm in front of VP. Determine the true inclination of the line with HP and VP.
- Full PDF:
Engineering Drawing EDG 312311 Notes
- Only first-chapter notes are available with solutions:
Conclusion
In this post, we shared all important questions and the first chapter notes for the Engineering drawing subject.
